APS Radial Duo-Caliper (LH) | Formula Student Series
4 500,00 kr
Sale price
4 500,00 kr
Regular price
Skip to product information
5 left
APS Radial Duo-Caliper (LH) | Formula Student Series
4 500,00 kr
Sale price
4 500,00 kr
Regular price
Excl. VAT

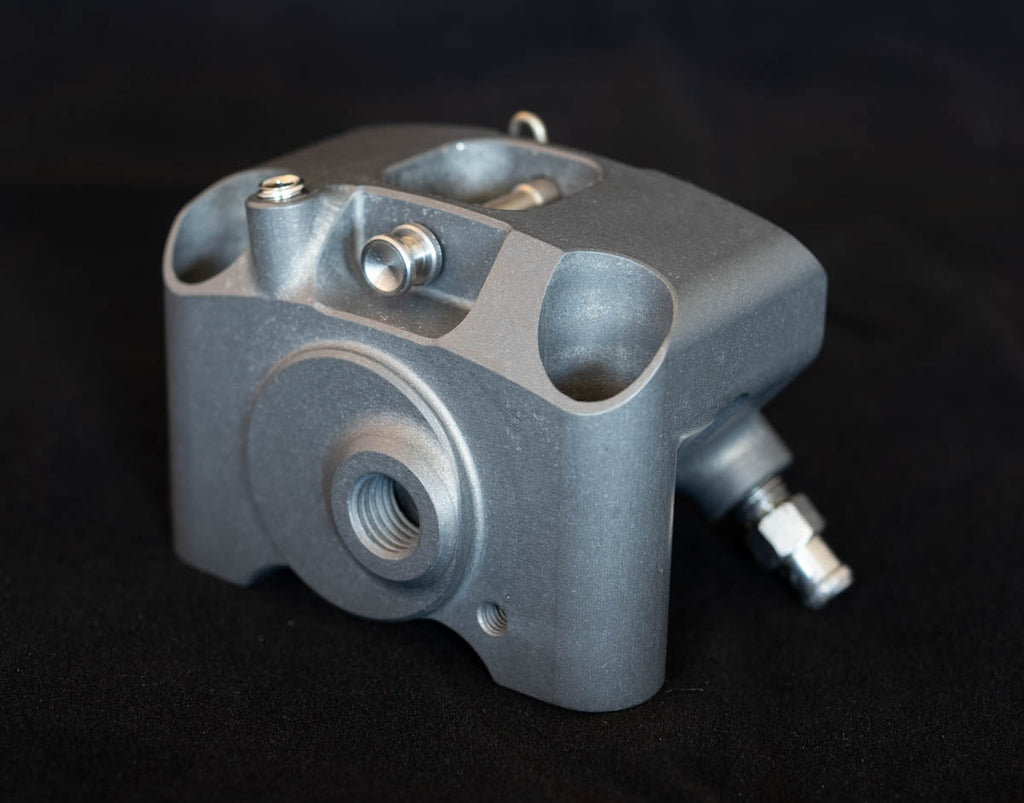

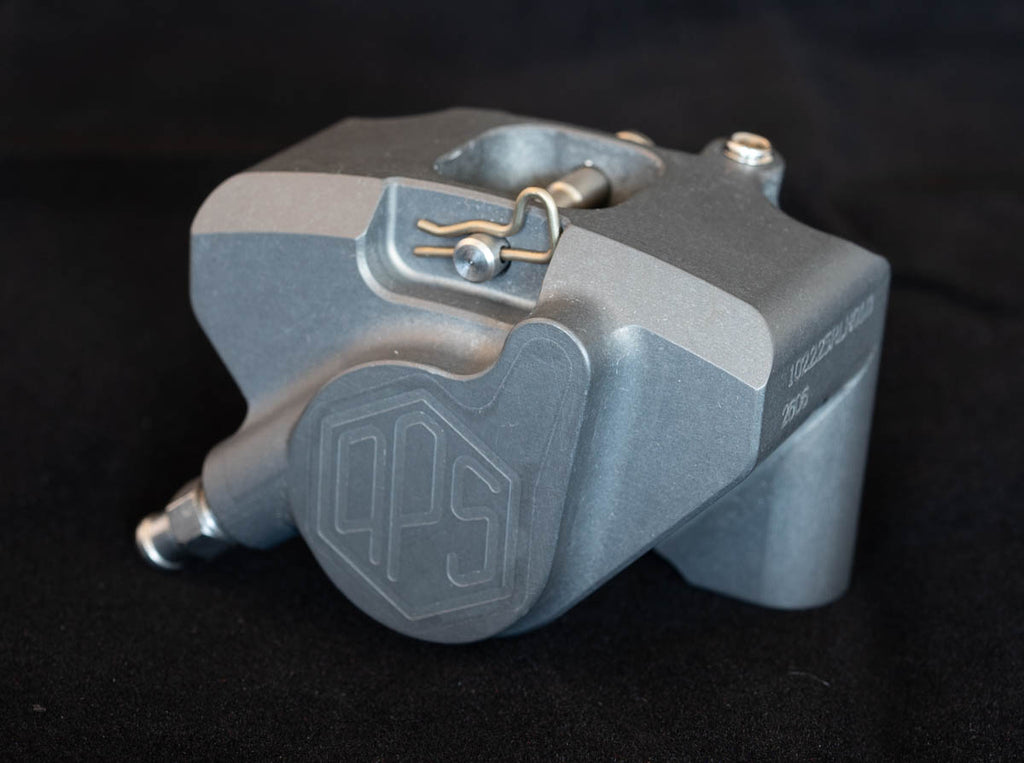

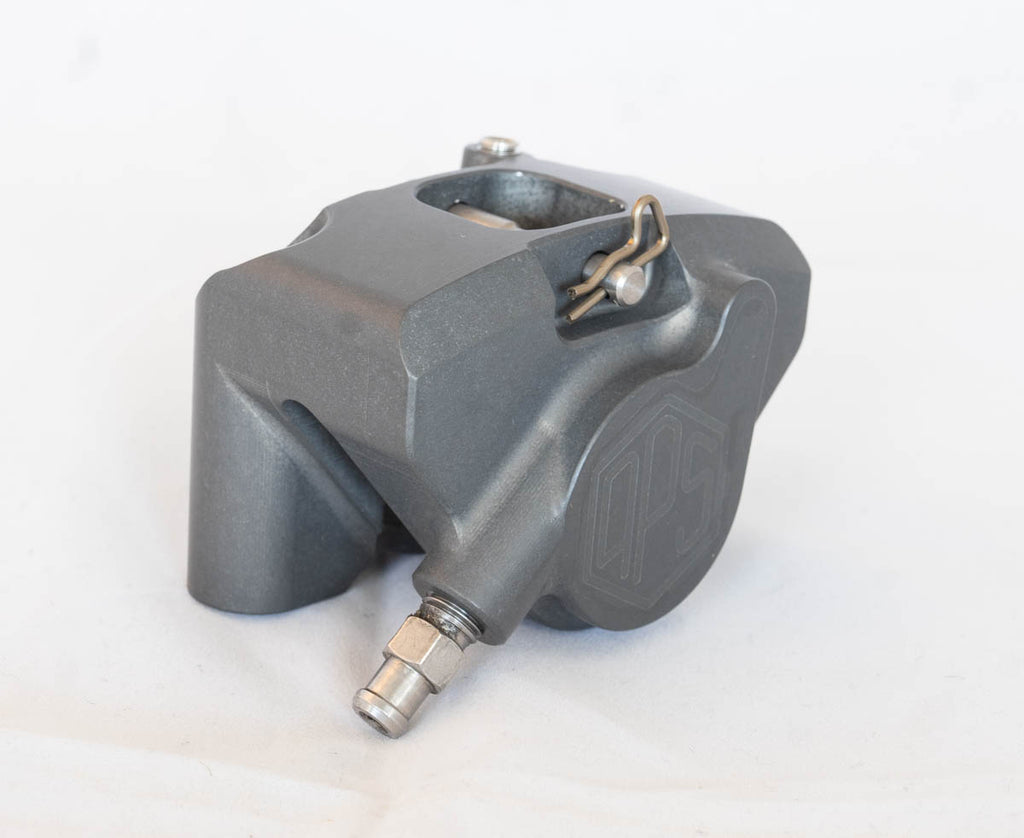

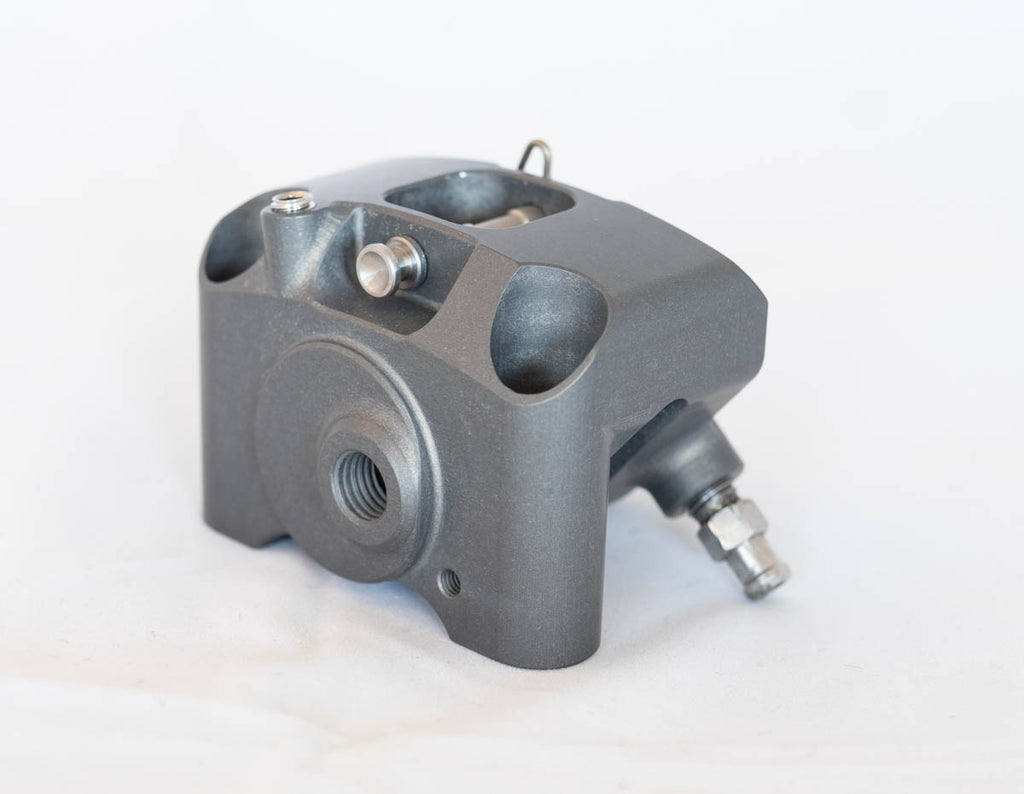

Monoblock caliper, bespoke for Formula Student race cars.*
OBS! Brake pads are bought seperatly.
| Article number: | BC-101.4.25.R.RH.1.1-0 |
| Number of pistons: | 2 |
| Piston diameter: | 25 mm |
| Piston material: | Stainless steel |
| Recomended disc diamter: | 150-230 mm |
| Recomended disc thickness: | 3,5-5 mm |
| Rotor friction height: | 27 mm |
| EBC brake pad model: | FA148 |
| SBS brake pad model: | 665DC |
| Hydraulic coupling: | M10 x 1,25 |
| Calliper house weight: | 178 g |
| Assmebled calliper weight: ** | 234 g |
| Calliper house material: | Aluminium 6082 |
| Surface treatment: | Hardcoat anodising |
| Colour: | Natural |
| Mounting: | Radial |
| Temperature sensor coupling: | M4 ↓ 6 |
| Placement: | Left hand side*** |
| Link to PDF drawing: | BC-102.2.25.R.RH.1.0 customer drawing.pdf |
| Link to STEP file 3D model: | BC-102.2.25.R.LH.1.0 web.STEP |
| Link to deformation diagram: | Deformation - 2 Piston Radial.jpg |
Although the calliper is bespoke for Formula Student cars, it can also be fully integrated with other vehicles, such as other types of race cars and motorcycles.
* The calliper being bespoke for Formula Student race cars means that it is designed with Formula Student regulations in mind. The calliper is dimensioned to suit the wheel sizes most commonly used today and features the same mounting pattern as many existing callipers. This makes switching to an APS calliper both smooth and practical, as no modifications to the calliper mounting are required while still providing a lighter, smaller, and stiffer calliper.
** The assembled calliper includes the housing, pistons, blead screws, pad retaingin pin, R-clip, grub screw, ball bearing, and piston seal kit. Brake pads are not included.
*** Left-hand side refers to a configuration in which the calliper is mounted behind the upright. The same part can also be used on the right-hand side if the calliper is mounted in front of the upright.
OBS! Brake pads are bought seperatly.
